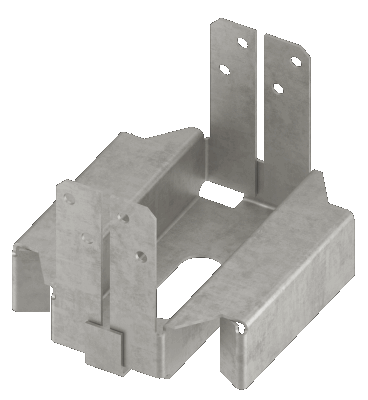

USP Structural Connector PAF44-TZ Post Anchor One-Piece 4 x 4 Triple Zinc

Post Anchors are used to secure wood posts to concrete footings. These post anchors also provide moisture damage protection and feature a 1" stand-off plate to elevate wood posts above concrete surfaces as required by building code.

PAF – Innovative one-piece design maintaining a 1” stand-off

Installation:
• Install the required fasteners according to the table.
• Anchor bolts, washers and nuts are not supplied with
the connector.
• For cured concrete or retrofit installations – use specified
diameter threaded rod with adhesive epoxy, following manufacturer’s
installation instructions.
• Anchor bolt installation – place specified diameter anchor bolt
at desired location with minimum 4" embedment into minimum
2,500 psi concrete. A minimum 2" edge distance from the
outermost edge of the post base to the edge of the concrete is
required to achieve allowable loads. Tighten the anchor bolt to
PAF base with nut and washer.
• Not recommended for fence posts or other unrestrained
(not fixed or fastened at top) applications. These anchors
are not designed to resist overturning (moment) loads.
